Model 23 Type Holder

The Model 23 Type Holder

SKU: SS-23-HOLDER
Your Price $0.00
Quantity


The Model 23 Type Holder can be modified in many ways to suit specific marking situations.

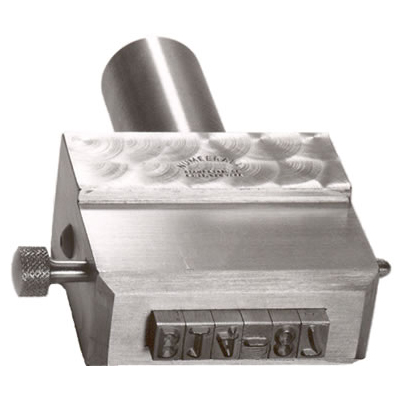

The unit shown is just a few of the many variations which can be adapted to suit specific applications. Contact our sales engineers with your requirements for a quotation.

Also see our standard steel type.

  • Extended Capacity
  • Multiple lines, with or without partition walls (Note: All multi-line type holders utilize set screws instead of type holding pins. If type holding pins are desired, a partition wall is required and must be stated when ordering. If not stated, partition walls will not be used.)

Model 23P-2
2 Line

10
Pieces
1/8" 3/4" x 2" N/A

Model 23P-2
2 Line with Partition

10
Pieces
per line
1/8" 3/4" x 2" 1/8"

Model 23P-3
3 Line with Partitions

16
Pieces
per line
1/8" Dovetail 1/32"

Model 23P Special King Size

18
Pieces
1/2" 2" x 2" N/A

Standard Stocked Type sets.
Spec and sizes below.




The following chart details the information on standard stocked type.

Character Size

Standard Body Dimensions

a

b

c

Notch Size (radius)

e

1/32" 1/16" 1/4" 7/8" 1/16" 5/16"
1/16" 1/16" 1/4" 7/8" 1/16" 5/16"
3/32" 3/32" 1/4" 7/8" 1/16" 5/16"
1/8" 1/8" 1/4" 7/8" 1/16" 5/16"
5/32" 5/32" 1/4" 7/8" 1/16" 5/16"
3/16" 3/16" 5/16" 1 1/4" 3/32" 7/16"
1/4" 1/4" 3/8" 1 1/4" 3/32" 7/16"
5/16" 5/16" 7/16" 1 1/4" 3/32" 7/16"
3/8" 3/8'' 1/2" 1 1/4" 3/32" 7/16"
1/2" 1/2" 5/8" 1 1/4" 3/32" 7/16"


Consult factory for pricing and availability

Any questions please call 714-979-1405 or email us at Sales@HittMarking.com
