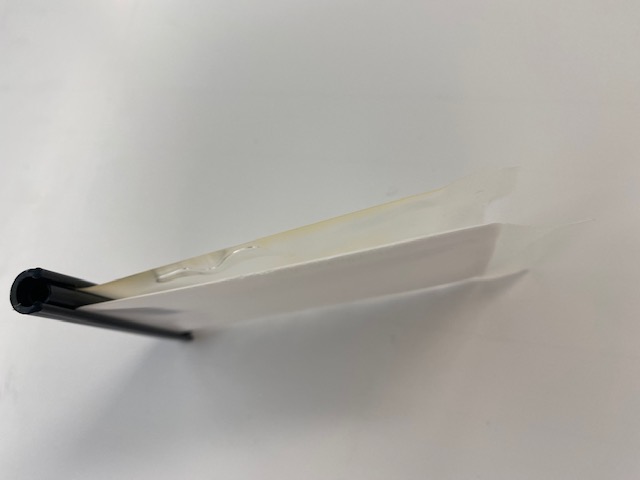

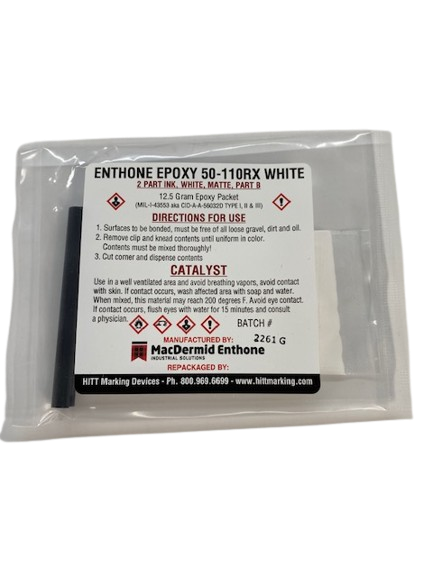

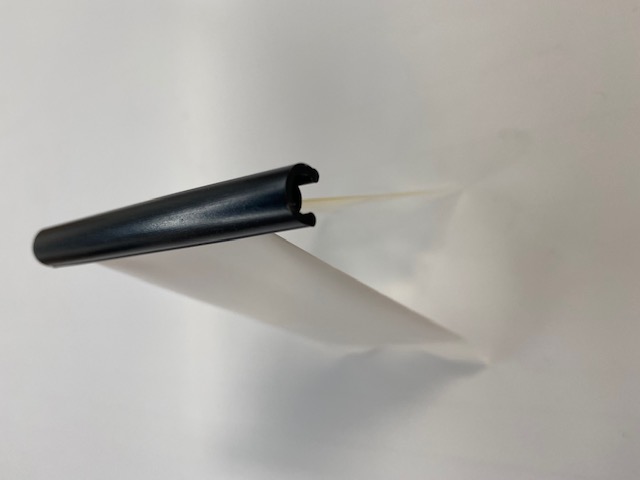

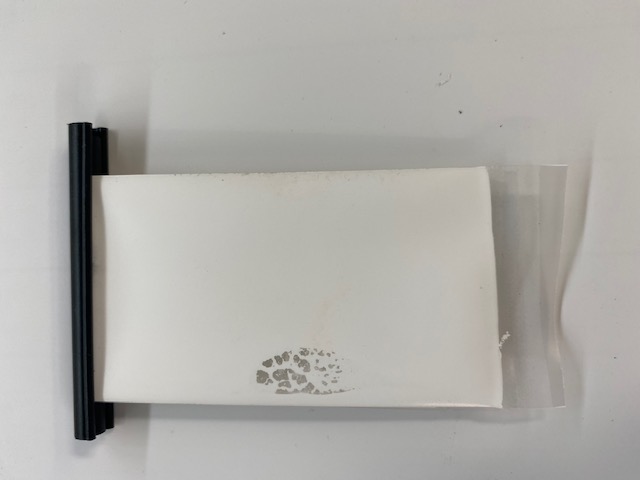

50-110RX Enthone Epoxy Ink - White with #77 Catalyst - Clip Packet
12.5 Gram Packet of 50-110RX ink with Catalyst #77.
50 110RX
White is a matte finish.
Meets MIL Spec.: CID A-A-56032D Types I, II & III
Formerly: MIL-I-43553b.
Color: #37925
Characteristics: Superior adhesion to epoxy, glass, metal or other nonporous surfaces designed for stamping or offset printing. Excellent resistance to abrasion, MEK, alcohol, TCE, flux removers, salt, acid and alkali solutions when properly cured.
When used with a stamp, use a brayer roller or similar device to roll the ink into a thin drawn down before transferring to the stamp.
View the epoxy ink packet instructions here;
MIXING INSTRUCTIONS
Measure ink and catalyst at the proper mix ratio. Both the ink and
catalyst should be weighed accurately. Excessive and insufficient
amounts of catalyst are detrimental to cured ink film properties. Mix
thoroughly without introducing excessive amounts of air. Avoid the use
of paper or wax coated cups. Stir from bottom of the container
OBSERVE INDUCTION PERIOD
All catalysts: 30 minutes
Catalysts 45 and 5: 60 minutes
Allow ink/catalyst mixture to stand for at least 30 minutes prior to
application. This provides an induction period ensuring a homogeneous mix
of resin and catalyst and allows any entrapped air to escape from the
mixture. The average pot life begins after the induction period
APPLICATION
50-000 Series inks may be applied by screen printing, spraying,
brushing and roller printing. To ensure optimum adhesion, it is
imperative that the surface to be printed is clean and free of any
residues or particulates.
BLACK and WHITE stocked / all other colors are not as popular and are considered a special order
COMMERCIAL ITEM DESCRIPTION
INK, MARKING, EPOXY BASE
Certified to MIL-I-43553 and AA56032.
The
General Services Administration has authorized the use of this
commercial item description (CID) as a replacement for MIL-I-43553B and
MIS-37271 by all federal agencies.
1.
SCOPE. This commercial item description covers a catalyzed epoxy system
of marking inks for metallic or other non-porous surfaces and printed
wiring boards.
2. CLASSIFICATION.
2.1 Type. The marking ink and color shall be of the following types and colors, as specified:
Type I - General usage
Type II - Non-conductive ink (e.g., printed wiring boards)
Type III - Outside exposure.
